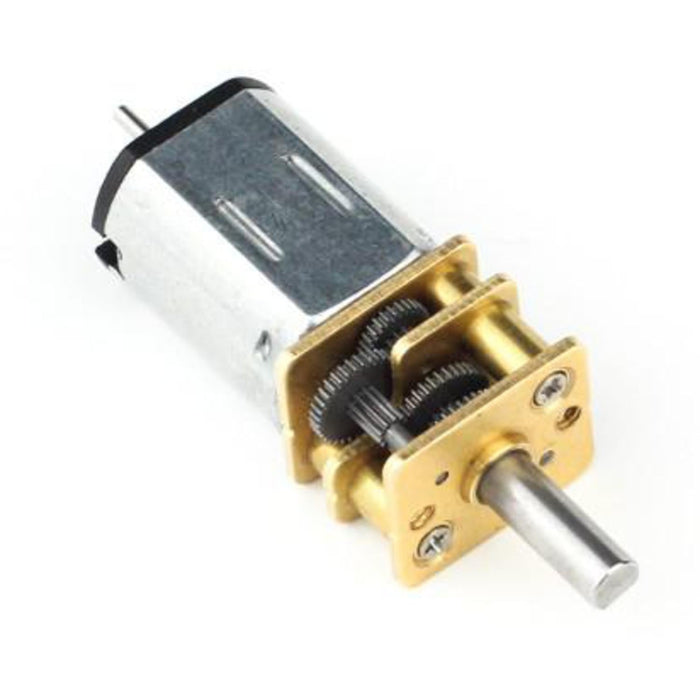

Micro Metal Gearmotor (Extended back shaft) - 50:1

This gearmotor is a miniature brushed DC motor with a metal gearbox available in a range of gearing ratios depending on use.

RatioSpeed @ 6VFree-run current @ 6VStall torque @ 6VStall current @ 6V11:11800±10% rpm80mA (160mA max)0.12kg. cm650mA20:11050±10% rpm90mA (180mA max)0.26kg. cm850mA50:1420±10% rpm80mA (160mA max)0.5kg. cm770mA298:175±10% rpm60mA (120mA max)2.5kg. cm900mA1006:114.2±10% rpm28mA (56mA max)5.3kg. cm
  • All of the micro metal gearmotors have the same physical dimensions, so one version can be easily swapped for another if your design requirements change.
  • Long (9mm), 3 mm-diameter D-shaped metal output shaft.
  • 4.5mm long, 1mm diameter back shaft, great for optical encoders!

The Micro Metal Gearmotor (Extended back shaft) - 50:1 appears in the following collections:

SKU PI-COM0800
